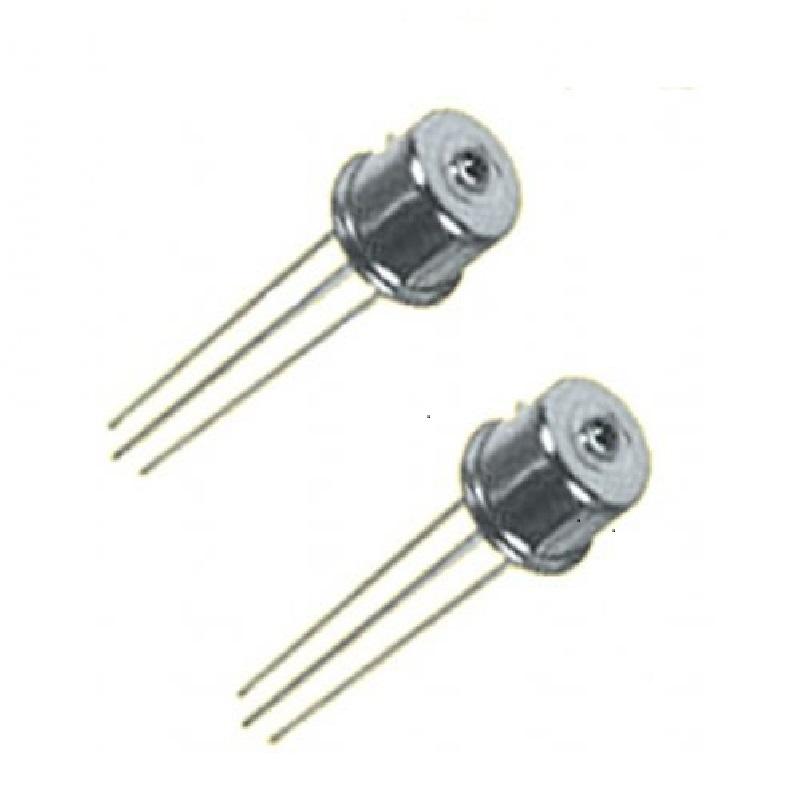

PD80-TO46-FW Series Photodiode
Features：
● Low Voltage Operation
● Low Capacitance and High Speed with a PIN Structure
● Low Dark Current
● Excellent Stability
Applications：
● Digital and Analog Optical Communication
● Optical LAN
● OTDR
PD300-TO46-BL Series Features：
● Large active area convenient for optical coupling
● Low Dark Current
● Respond to C-Band and 1310nm; L-Band
● High reliability
Applications：
● Near infrared sensors
● Laser diode and LED power monitor
● Near infrared spectroscopy
● Optical measurements and sensin
Features：
● Data rates up to 10 Gbps.
● 850nm/1310nm multimode.
● -40℃ to 85℃ Operation.
● Received signal strength indicator(RSSI).
● High reliability.
Applications：
●High speed Data Communication.
●10Gigabit Ethernet.
Features：
● Data rates up to 2.5 Gbps.
● 850nm/1310nm multimode.
● -40℃ to 85℃ Operation.
● Received signal strength indicator(RSSI).
● High reliability.
Applications：
●High speed Data Communication.
●2.5Gigabit Ethernet.
Features:
● Single +3.3V Power Supply
● High Sensitivity
● Differential Output
● InGaAs PIN Detector and TIA inside
● Plastic LC Receptacle
Applications:
● Digital Optical Communi
Features:
● LC Receptacle, with flexible circuit attached.
● Single +3.3V Power Supply.
● Suitable for long wavelength 10Gbps applications.
● Differential Output.
● Photo current monitoring available.
● InGaAs PIN Detector and TIA inside.
Applications:
●10G Fiber Channel.
●SDH/SONET Transceivers up to 10Gbps.
Features:
● Low threshold current
● High bandwidth
● Operating temperature range TC = −40 to +85°C
● With optical isolator
Applications:
● 10G Gigabit Ethernet ● 10G Fiber Channel
Features:
● Data rates up to 25 Gbps.
● Single +3.3V Power Supply.
● -40℃ to 85℃ Operation.
● Differential Output.
● Received signal strength indicator(RSSI).
● LC Receptacle, with flexible circuit attached.
● InGaAs PIN Detector and TIA inside.
● With 1KΩ resistance
Applications:
● High speed Telecom and Datacom.
