Wavelength :
1550nmRate :

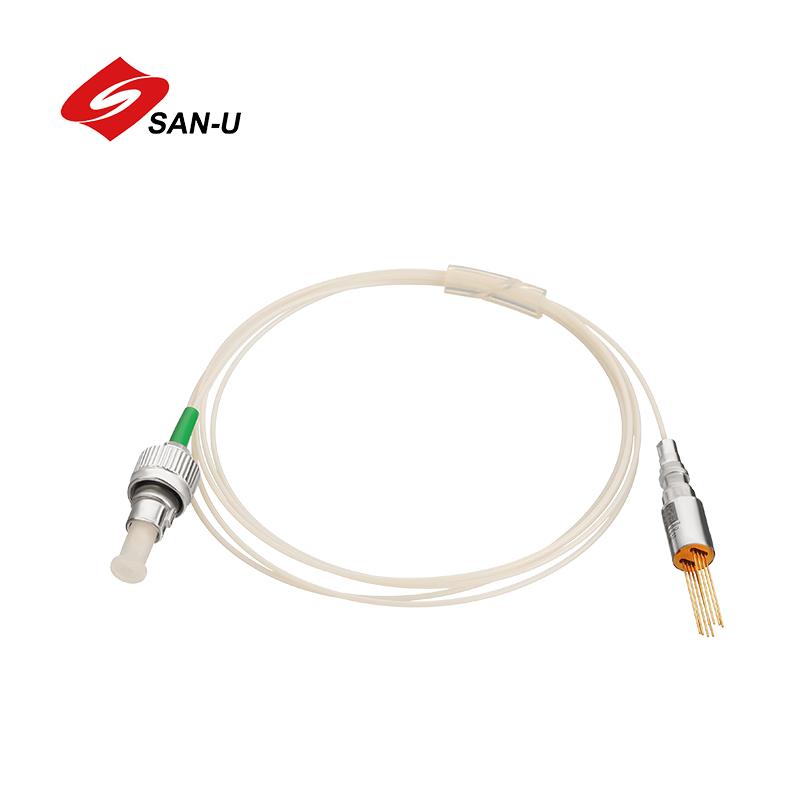

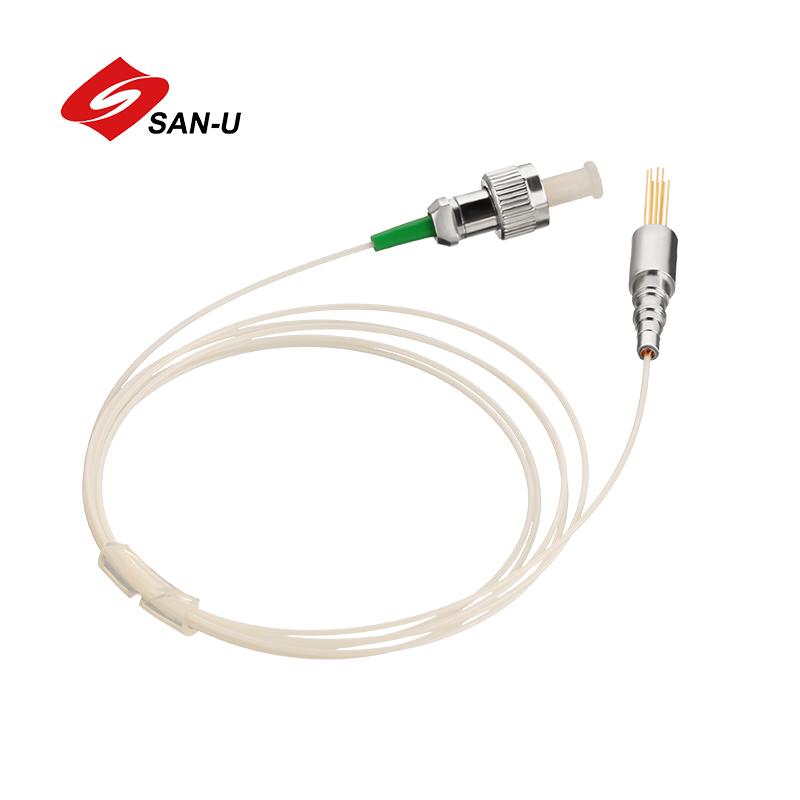

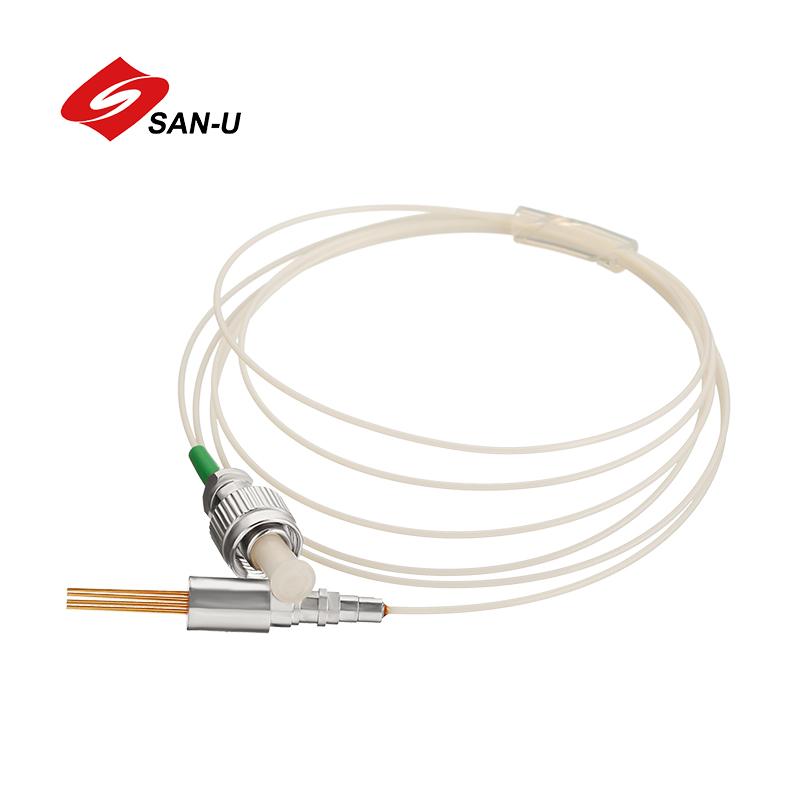

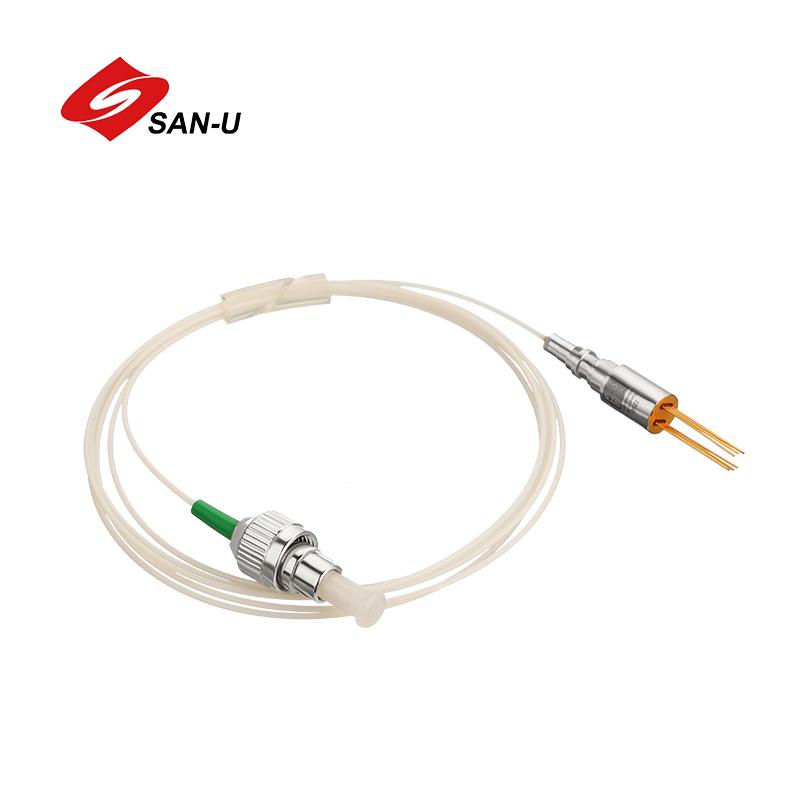

2.5G1550nm TOSA 2.5Gbps with pigtail Laser radar diode lidar diode
Features:
Low threshold current
High output power
Ultra small form-factor 8-pin TO package with aspherical lens
Very low TEC power consumption
Specifications:
bsolute Maximum Ratings
Parameter |
Symbol |
Min |
Max. |
Unit |
LD Reverse Voltage |
Vr(LD) |
- |
2 |
V |
LD Forward Current |
If (LD) |
- |
120 |
mA |
TEC Voltage |
V(TEC) |
- |
1.5 |
V |
TEC Current |
I (TEC) |
- |
0.9 |
A |
Operating Temperature |
Top |
-5 |
70 |
℃ |
Storage Temperature |
Tstg |
-40 |
100 |
℃ |
Lead Solder Temperature |
- |
- |
260 |
℃ |
Lead Soldering Time |
- |
- |
10 |
s |
