BOSA 10Gbps Bi-Directional Optical Sub-Assembly 1330nm 1550nm (1330nm 1270nm)

BOSA 10Gbps Bi-Directional Optical Sub-Assembly 1330nm 1550nm (1330nm 1270nm)

Features:

● High-stability 1xx0nm DFB laser

● InGaAs PIN Photodiode

● Single +3.3V power Supply

Applications:

● Optical communication systems

Rate :
10G

Inquiry now Download

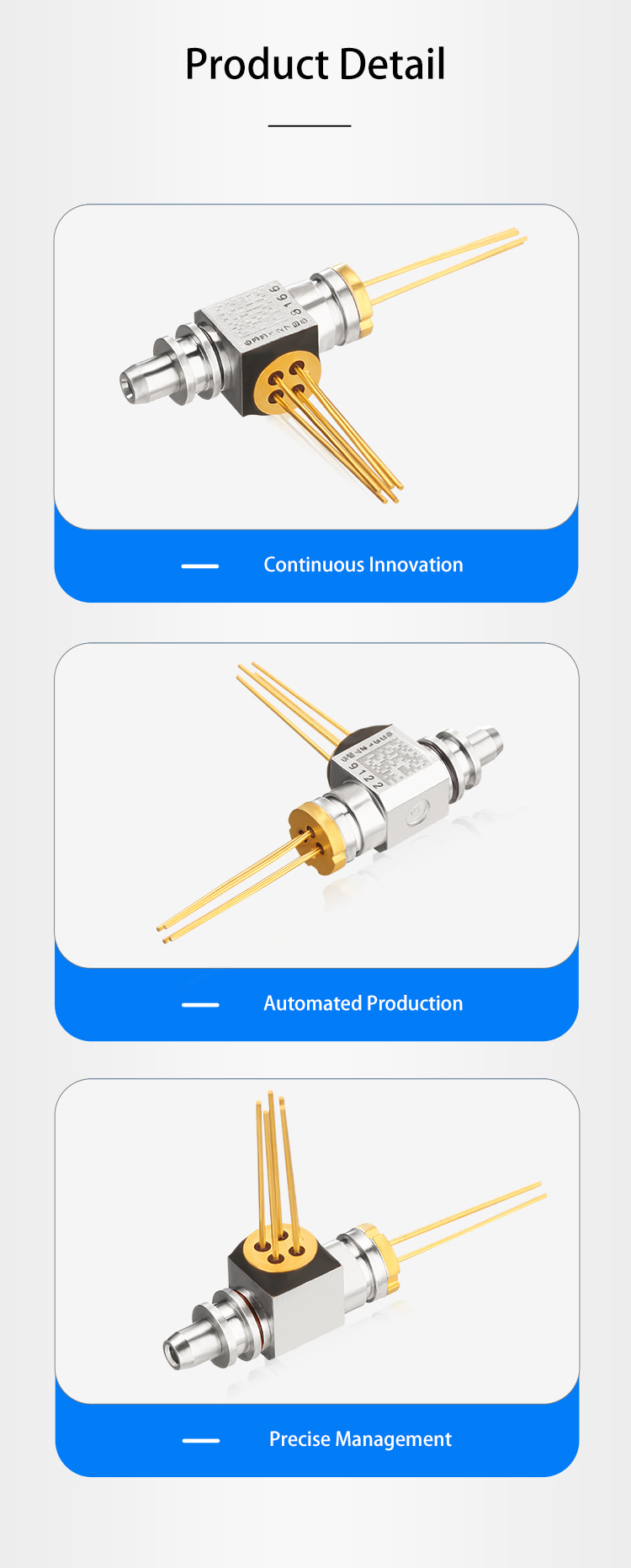

Product Details

Specification parameters

BOSA 10Gbps Bi-Directional Optical Sub-Assembly

Features:
● High-stability 1xx0nm DFB laser
● InGaAs PIN Photodiode
● Single +3.3V power Supply
Applications:
● Optical communication systems

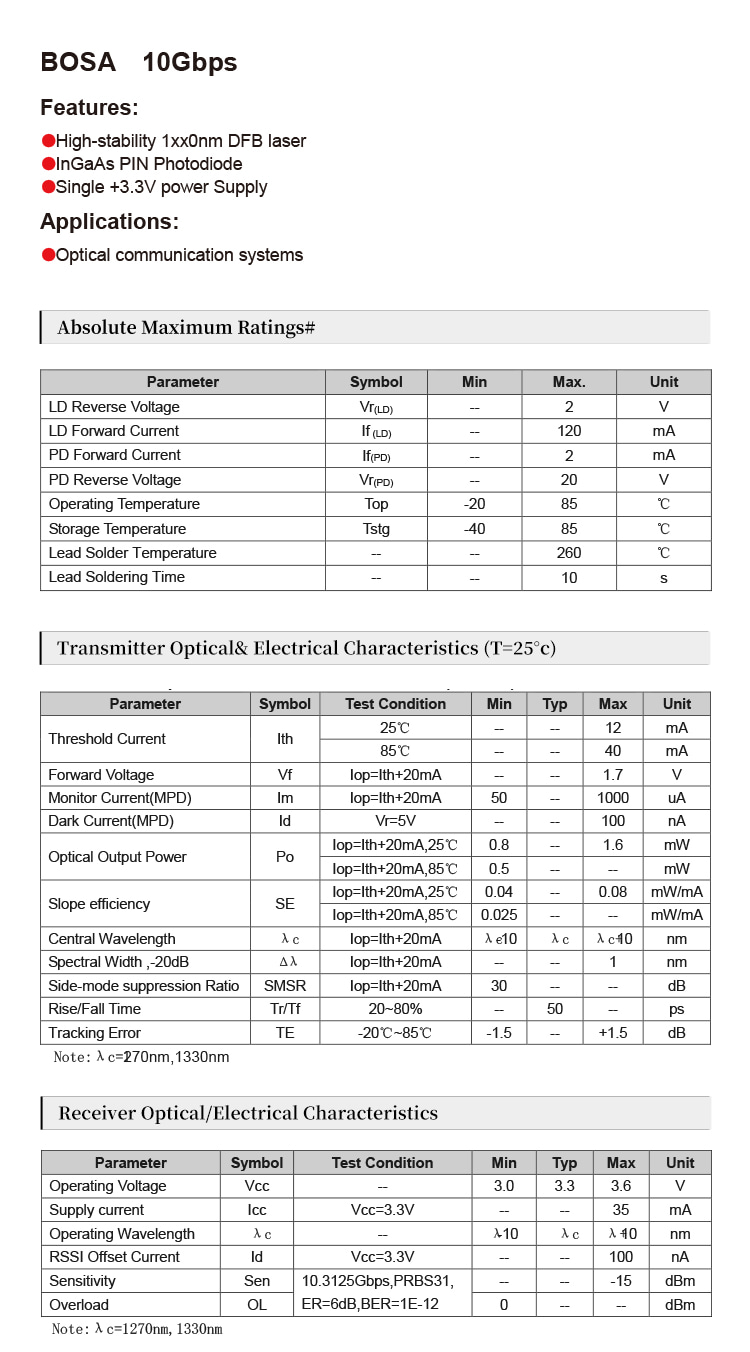

Specifications:
Absolute Maximum Ratings

Parameter	Symbol	Min	Max.	Unit
LD Reverse Voltage	Vr(LD)	--	2	V
LD Forward Current	If (LD)	--	120	mA
PD Forward Current	If(PD)	--	2	mA
PD Reverse Voltage	Vr(PD)	--	20	V
Operating Temperature	Top	-20	85	℃
Storage Temperature	Tstg	-40	85	℃
Lead Solder Temperature	--	--	260	℃
Lead Soldering Time	--	--	10	s

Transmitter Optical& Electrical Characteristics (T=25ºC)
Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Threshold Current	Ith	25℃	--	--	12	mA
Threshold Current	Ith	85℃	--	--	40	mA
Forward Voltage	Vf	Iop=Ith+20mA	--	--	1.7	V
Monitor Current(MPD)	Im	Iop=Ith+20mA	50	--	1000	uA
Dark Current(MPD)	Id	Vr=5V	--	--	100	nA
Optical Output Power	Po	Iop=Ith+20mA,25℃	0.8	--	1.6	mW
Iop=Ith+20mA,85℃	0.5	--	--	mW
Slope efficiency	SE	Iop=Ith+20mA,25℃	0.04	--	0.08	mW/mA
Iop=Ith+20mA,85℃	0.025	--	--	mW/mA
Central Wavelength	λc	Iop=Ith+20mA	λc-10	λc	λc+10	nm
Spectral Width ,-20dB	Δλ	Iop=Ith+20mA	--	--	1	nm
Side-mode suppression Ratio	SMSR	Iop=Ith+20mA	30	--	--	dB
Rise/Fall Time	Tr/Tf	20~80%	--	50	--	ps
Tracking Error	TE	-20℃~85℃	-1.5	--	+1.5	dB

Receiver Optical/Electrical Characteristics
Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Operating Voltage	Vcc	--	3.0	3.3	3.6	V
Supply current	Icc	Vcc=3.3V	--	--	35	mA
Operating Wavelength	λc	--	λ-10	λc	λ+10	nm
RSSI Offset Current	Id	Vcc=3.3V	--	--	100	nA
Sensitivity	Sen	10.3125Gbps,PRBS31, ER=6dB,BER=1E-12	--	--	-15	dBm
Overload	OL	10.3125Gbps,PRBS31, ER=6dB,BER=1E-12	0	--	--	dBm
