TOSA-LC 1.25Gbps 850nm Transmitter Optical Subassembly

Features:
● Light Wavelength: 850nm
● Bit Rate: 1.25Gbps
● Low Threshold Current
● LC Receptacle
Applications:
● Digital Optical Communication
  • Wavelength :

    850nm
  • Rate :

    1.25G
  • Power :

    0.5

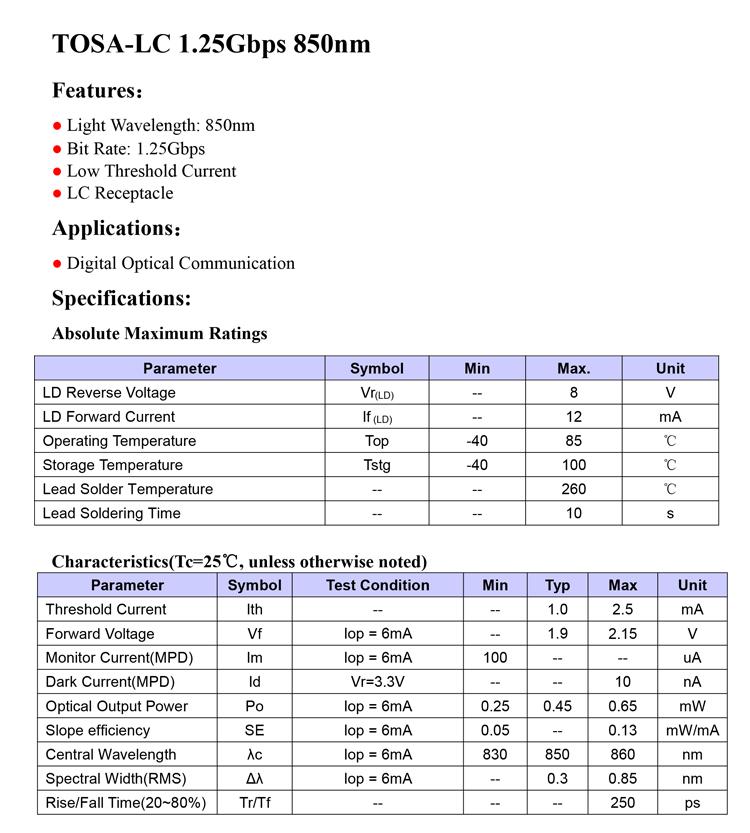

TOSA-LC 1.25Gbps 850nm

Features:

● Light Wavelength: 850nm

● Bit Rate: 1.25Gbps

● Low Threshold Current

● LC Receptacle

Applications:

● Digital Optical Communication

Specifications:

Absolute Maximum Ratings

Parameter

Symbol

Min

Max.

Unit

LD Reverse Voltage

Vr(LD)

--

8

V

LD Forward Current

If (LD)

--

12

mA

Operating Temperature

Top

-40

85

Storage Temperature

Tstg

-40

100

Lead Solder Temperature

--

--

260

Lead Soldering Time

--

--

10

s



Characteristics(Tc=25℃, unless otherwise noted)

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Threshold Current

Ith

--

--

1.0

2.5

mA

Forward Voltage

Vf

Iop = 6mA

--

1.9

2.15

V

Monitor Current(MPD)

Im

Iop = 6mA

100

--

--

uA

Dark Current(MPD)

Id

Vr=3.3V

--

--

10

nA

Optical Output Power

Po

Iop = 6mA

0.25

0.45

0.65

mW

Slope efficiency

SE

Iop = 6mA

0.05

--

0.13

mW/mA

Central Wavelength

λc

Iop = 6mA

830

850

860

nm

Spectral Width(RMS)

Δλ

Iop = 6mA

--

0.3

0.85

nm

Rise/Fall Time(20~80%)

Tr/Tf

--

--

--

250

ps
